Zidoo DAC -Z6
Regular price
$599.00
Sale price
$699.00
Shipping : FREE in Canada
EverSolo-DAC_Z6-User-Manual
USER GUIDES
Description
Functional overview
Dual ES9068 D\A converter chip, independent decoding for dual channel.
The 3rd generation XMOS XU316 with higher performance and faster speed.
High precision, low jitter dual clock oscillators synchronous processing.
Up to DSD512 Native, PCM768Hz@32Bit decoding.
Optical, Coaxial and USB support MQA full decoding and rendering.
Qualcomm QCC5125 Bluetooth 5.0 module, APTX HD/LDAC protocol.
Fully balanced audio architecture, differential amplifier circuit and professional calibration.
High-performance headphone amp output, 16-300 ohm headphone driver.

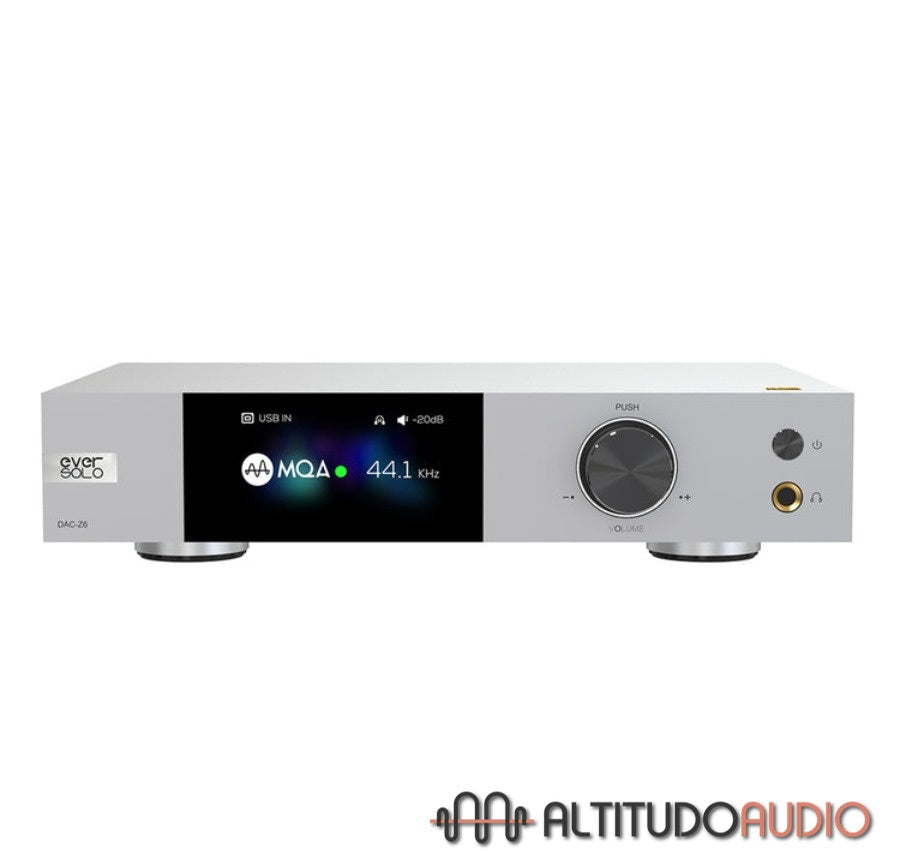

3-inch LCD screen, with diverse VU meter modes.
Low ripple power supply to ensure a purer power source.

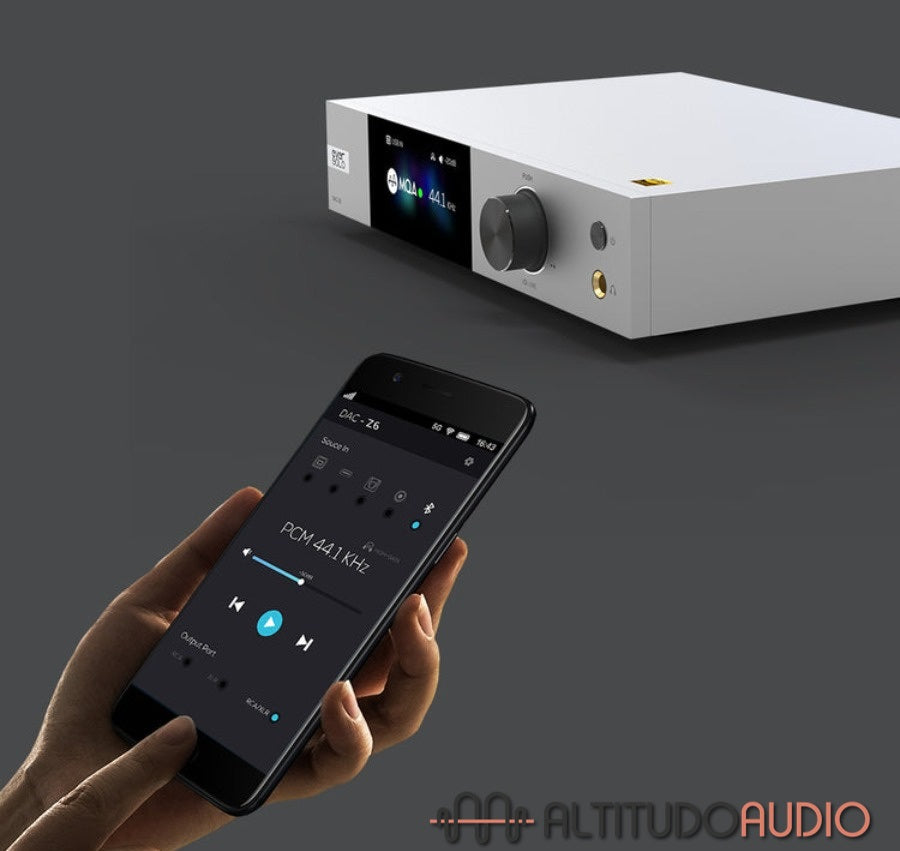

Exclusive mobile phone controller APP for global control.
DAC-Z6
Specs
Model
EverSolo DAC-Z6
Display Screen
3-inch LCD screen
Chassis
Aluminum Alloy
DAC Audio
ES 9068*2
Audio Processor
XMOS XU316
OPA Chip
RT 6863*6
Power Supply
high quality switching power supply with low noise
Bluetooth Audio Input
Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol

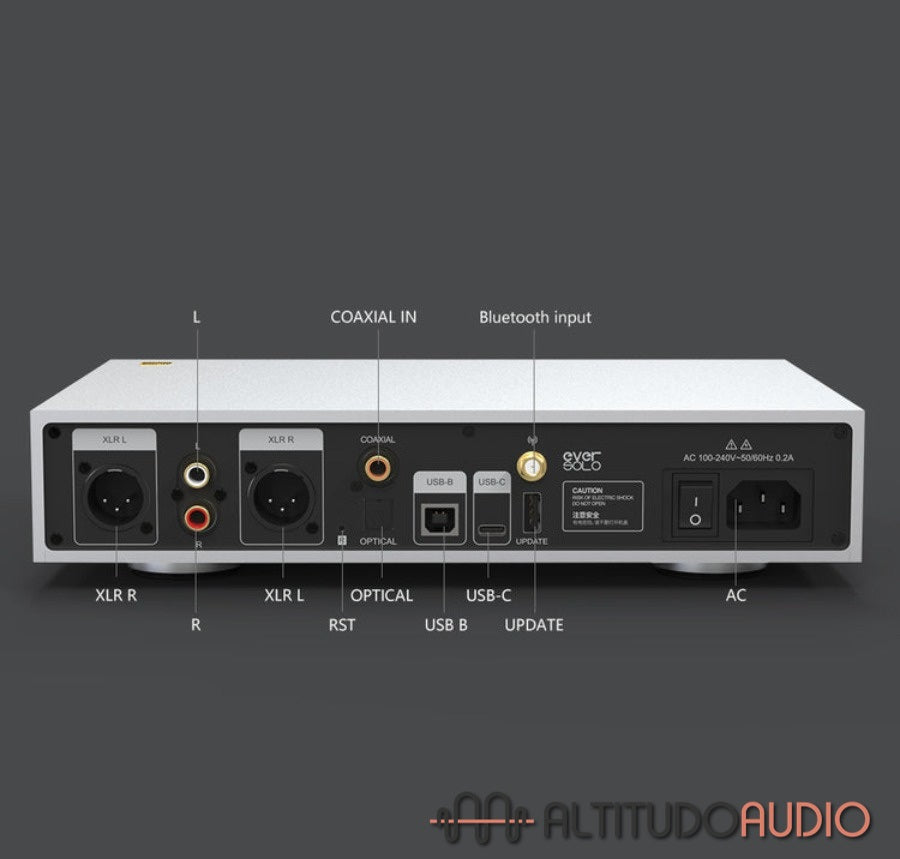

USB-B DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
USB-C DAC Input
Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
OPTICAL Audio Input
Up to stereo PCM 192Khz 24Bit, DSD64 Dop,MQA
COAXIAL Audio Input
Up to stereo PCM 192Khz 24Bit, DSD64 Dop,MQA
Analog Audio Output
Preamp output: XLR(balanced)+RCA
Headphone output: 6.3mm single-ended
Headphone output: 6.3mm single-ended
USB Port
USB2.0*1（only for firmware upgrade）
Control Methods
Remote control, Mobile APP control, Knob control
Headphone Impedance
16-300Ω (low gain mode:16-32Ω/high gain mode:32-300Ω)
XLR Audio Output
Output Level(Vrms)：4.1Vrms@0dBFS
THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）
THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）
Noise@No-wt ：<3uVrms
SNR)@No-wt：125@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-123dB@1kHz
DNR)@No-wt：125dB@1kHz
THD+N@A-wt：0.000094%@1kHz（-120dB@1kHz）
THD+N@No-wt：0.000117%@1kHz（-118dB@1kHz）
Noise@No-wt ：<3uVrms
SNR)@No-wt：125@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-123dB@1kHz
DNR)@No-wt：125dB@1kHz
RCA Audio Output
Output Level(Vrms)：2.1Vrms@0dBFS
THD+N@A-wt：0.000116%@1kHz(-118dB@1kHz)
THD+N@No-wt：0.000138%@1kHz(-117dB@1kHz)
Noise@No-wt ：<2.5uVrms
SNR)@No-wt：21dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-118dB@1kHz
DNR)@No-wt：121dB@1kHz
THD+N@A-wt：0.000116%@1kHz(-118dB@1kHz)
THD+N@No-wt：0.000138%@1kHz(-117dB@1kHz)
Noise@No-wt ：<2.5uVrms
SNR)@No-wt：21dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
CROSSTALK：-118dB@1kHz
DNR)@No-wt：121dB@1kHz
Headphone
(low gain mode)
(low gain mode)
Output Level(Vrms)：1.2Vrms@0dBFS
Max Power：： 45 mW@32Ω
THD+N@A-wt：0.00028%@1kHz(-111dB@1kHz)
THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：114dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：114dB@1kHz
Max Power：： 45 mW@32Ω
THD+N@A-wt：0.00028%@1kHz(-111dB@1kHz)
THD+N@No-wt：0.00031%@1kHz(-110dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：114dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：114dB@1kHz
Headphone
(high gain mode)
(high gain mode)
Output Level(Vrms)：2.8Vrms@0dBFS
Max Power： 26 mW@300Ω
THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz)
THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：121dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：121dB@1kHz
Max Power： 26 mW@300Ω
THD+N@A-wt：0.00014%@1kHz(-117dB@1kHz)
THD+N@No-wt：0.00016%@1kHz(-116dB@1kHz)
Noise@No-wt ：<3.5uVrms
SNR)@No-wt：121dB@1kHz
frequency response：20Hz-20kHz(±0.15dB)
DNR)@No-wt：121dB@1kHz
Power Input
AC 110~240V 50/60Hz
Rated power
9W
Product Dimensions
270mm(W) * 187mm(D)* 50mm(H)

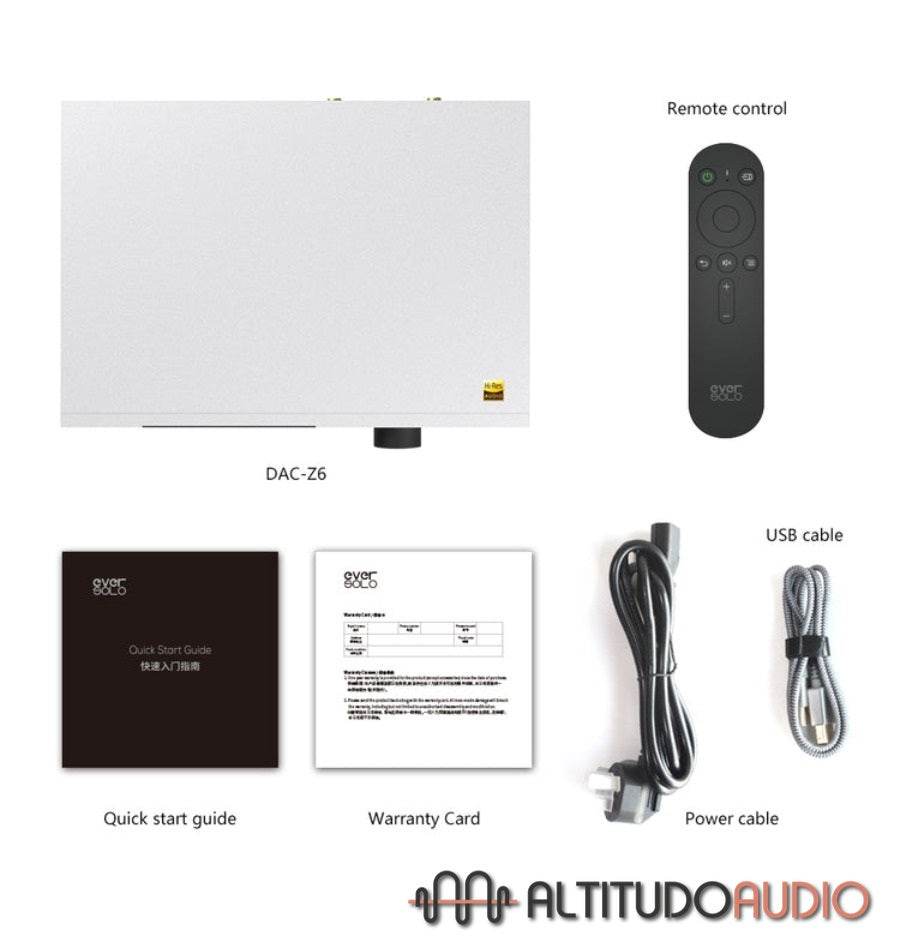

Accessories
Remote control*1, Power cable*1, User manual*1
