Tone Winner

TONE WINNER AT-300- 16 CHANNEL PROCESSOR + AD7300 AMP ( COMBO )

Regular price $3,498.00 $0.00 Unit price per

Shipping : FREE in Canada



Tone Winner AT-300 - 16 Channel Processor

MAIN FEATURES:

  • Supports Dolby Atmos, DolbyTrue HD & all the previous Dolby   audio formats.
  • Supports DTS:X, DTS-Master & all the previous HD audio formats.
  • Support HDMI2.0 & HDCP2.2.
  • Supports 4K/60Hz,RGB 4:4:4, 18GHz full bandwidth video signal
  • Supports Dolby Vision and HDR 10 video signal.
  • Supports stacked OSD menu operation display.
  • Supports 9.3.4 or 7.3.6 in total 16 channels Dolby Atmos decoding lineout output.
  • Built-in auto room correction by Tone Winner
  • Built-in Bluetooth audio receiver function.
  • Built-in audio player function, support files playing from TF card & USB disk,
  • Supports several lossless & compressed audio format files playing, such as FLAC,APE, WAV, MP3 & etc; support multi-layer folder management.
  • Supports smart phone App control to be added in the future.
  • Supports over 12 variations of speaker configuration from 2.0 channel to 7.3.6

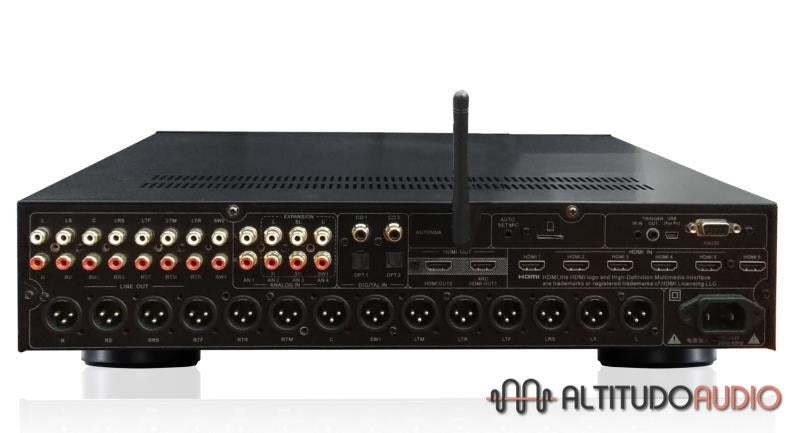

  • 6 HDMI inputs, 2 HDMI outputs, 2 coaxial inputs, 2 optical inputs & 3 analogue audio inputs.
  • RS232 integrated controller, IR inputs and Trigger outputs.
  • Supports HDMI ARC, eARC and CEC.
  • Up to 1 second lip sync adjustment.
  • Each channel has 7 to 11 band EQ adjustment.
  • Latest  ADI new dual core DSP.

COMBO

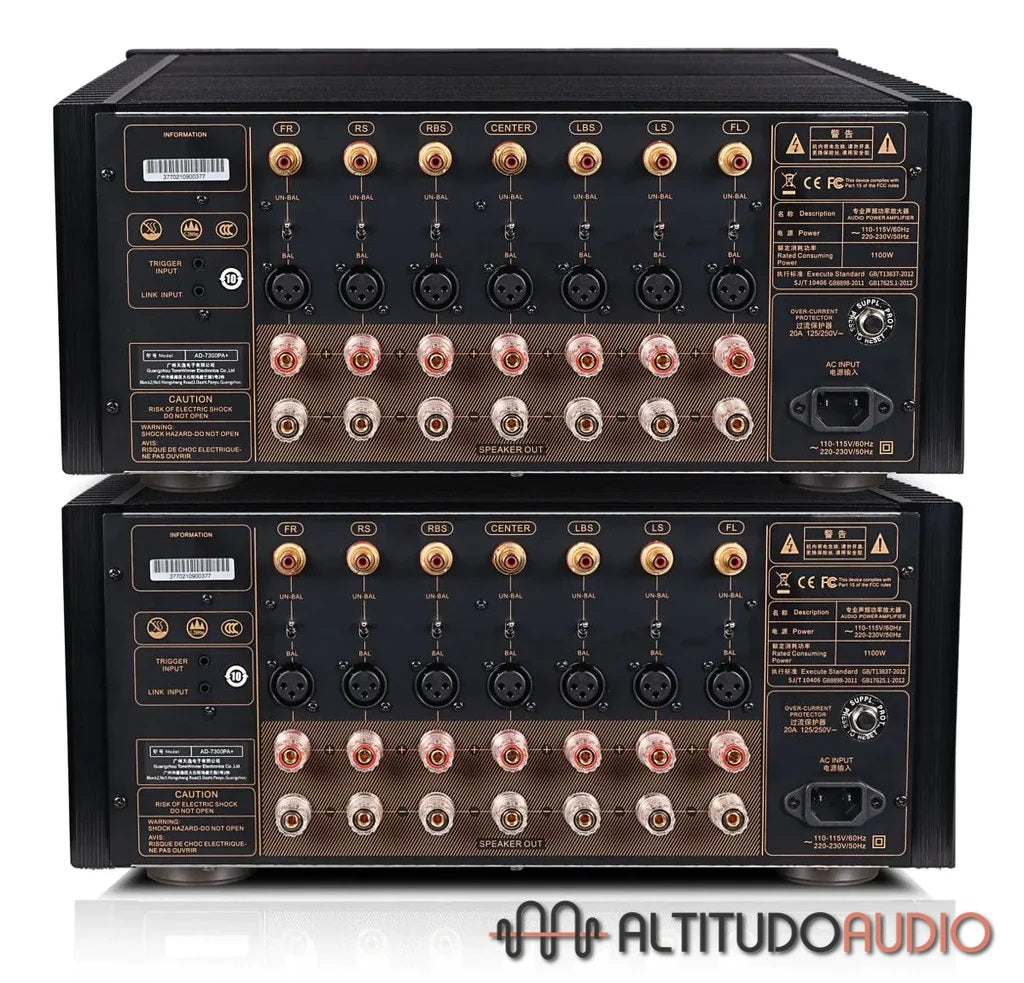

 Tone Winner AD-7300 Amplifier



 Audio Specifications: 120 Volts Test Results:

  • Topology: Fully discrete, dual differential, high current, short signal path Class A/B - Class "H" power supply.
  • Numbers of Channel: 7 Channels - High powered single channel modules.
  • Power Output: ( Rated Power; THD <0.1% @ 120V (Tested @ AC 120V) - (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
  • 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
  • 507 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
  • 266 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
  • 434 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
  • 180 watts RMS/channel; THD<0.1%; 8 Ohms; all Seven channels driven.

Audio Specifications: 240 Volts Test Results:

  • Topology: Fully discrete, dual differential, high current, short signal path Class A/B - Class "H" power supply.
  • Numbers of Channel: 7 Channels - High powered single channel modules.
  • Power Output: ( Rated Power; THD <0.1% @ 240V (Tested @ AC 240V) - (AC 240V Will Increase the output wattage and maintain the THD<0.1%.)
  • 324 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
  • 584 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 4 Ohms; one channel driven.
  • 307 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
  • 500 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
  • 190+ watts RMS/channel; THD<0.1%; 8 Ohms; all Seven channels driven.


  • Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
  • Broad-Band Frequency Response: 10 Hz to 70 kHz +0/-2 dB.
  • THD + noise: < 0.006%; at 100 watts RMS; 1 kHz; 8 Ohms.
  • Signal to Noise Ratio (8 Ohm load):
  • > 106 dB; ref FTC rated power; unbalanced input (A-weighted).
  • > 91 dB; ref 1 watt; unbalanced input (A-weighted).
  • Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).
  • Damping Factor (8 Ohm load): > 149.
  • Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.
  • Gain: 28 dB.
  • Maximum Power Consumption: 2056 watts at 120V & 1128W at 240V
  • Power Supply: 110V-240V- 15 Amps-20 Amps Auto Switching Class "H"Power Supply.
  • Material: Aluminum
  • Modules: Separate Heatsinks for individual modules.
  • Color: Black

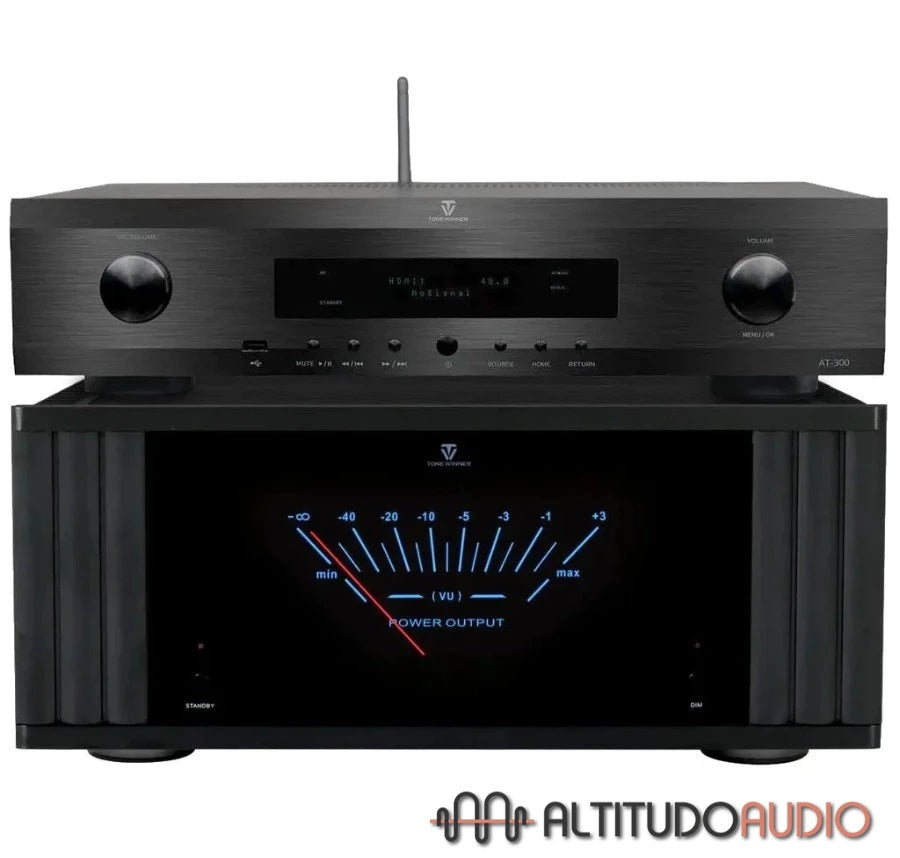

  • Front Panel: Analogue meter with blue LED lights and Red Needle.
  • G.W: 26.3KGS ( 57.98 Lb)
  • Unit size: 17.48 L X 17.32 W X 7.76 H Inches
  • Package size:22.52 L X 22.52 W X 12.64 H Inches
  • Accessories: 120 Volts - 15 Amp Power cord cable Included
  • Warranty: 2 years warranty
