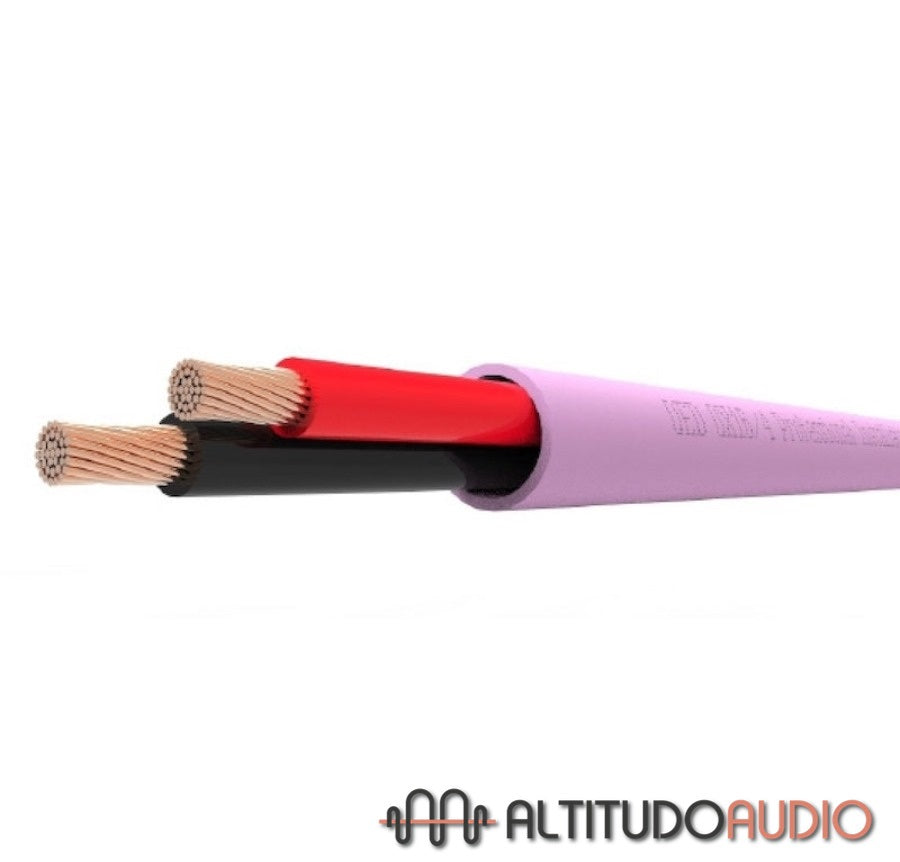

PROFESSIONAL QX16/2 LSZH Fire Rated Speaker Cable (Priced Per Meter)
QX16/2 and QX16/4 LSZH Speaker Cable
Low Smoke Zero Halogen (LSZH)
QX16/2 and QX16/4 LSZH are high performance and exceptional quality installation speaker cables with the added bonus of a fully certificated LSZH fire rated design. They deliver excellent levels of performance in all multi-room and home cinema installations.
FEATURES AND BENEFITS
Large cross-sectional area of high purity copper conductors
Ensures good performance levels are maintained even on longer runs
Sequentially metre marked - counting down so you always know what you have left on the reel or in the box
Colour-coded conductor sheaths
Fully tested LSZH Design
Full test report available on request
RoHS2 Compliant
SPECIFICATIONS
|
Conductor Size |
16 AWG |
|
Conductor Construction |
30/0.25 |
|
Conductor Resistance |
13.3 Ω/km |
|
Conductor Cross-sectional Area |
1.57 mm2 |
|
Insulation Colour |
16/2: Red, Black 16/4: Red, Black, White, Green |
|
Jacket Material |
LSZH |
|
Outside Diameter |
16/2: 6.20 mm 16/4: 7.20 mm |
|
Jacket Colour |
Pink |
|
Weight |
16/2: 58 kg/km 16/4: 98 kg/km |
